Nitrogen Atomized Aluminium Powder（YS/T620-2007）
Application
It is mainly used in Aluminium paint pigment industry, composite steel pipe industry, chemical raw material industry, refractory material industry, the metal conductive paste of the photovoltaic industry.
Specification

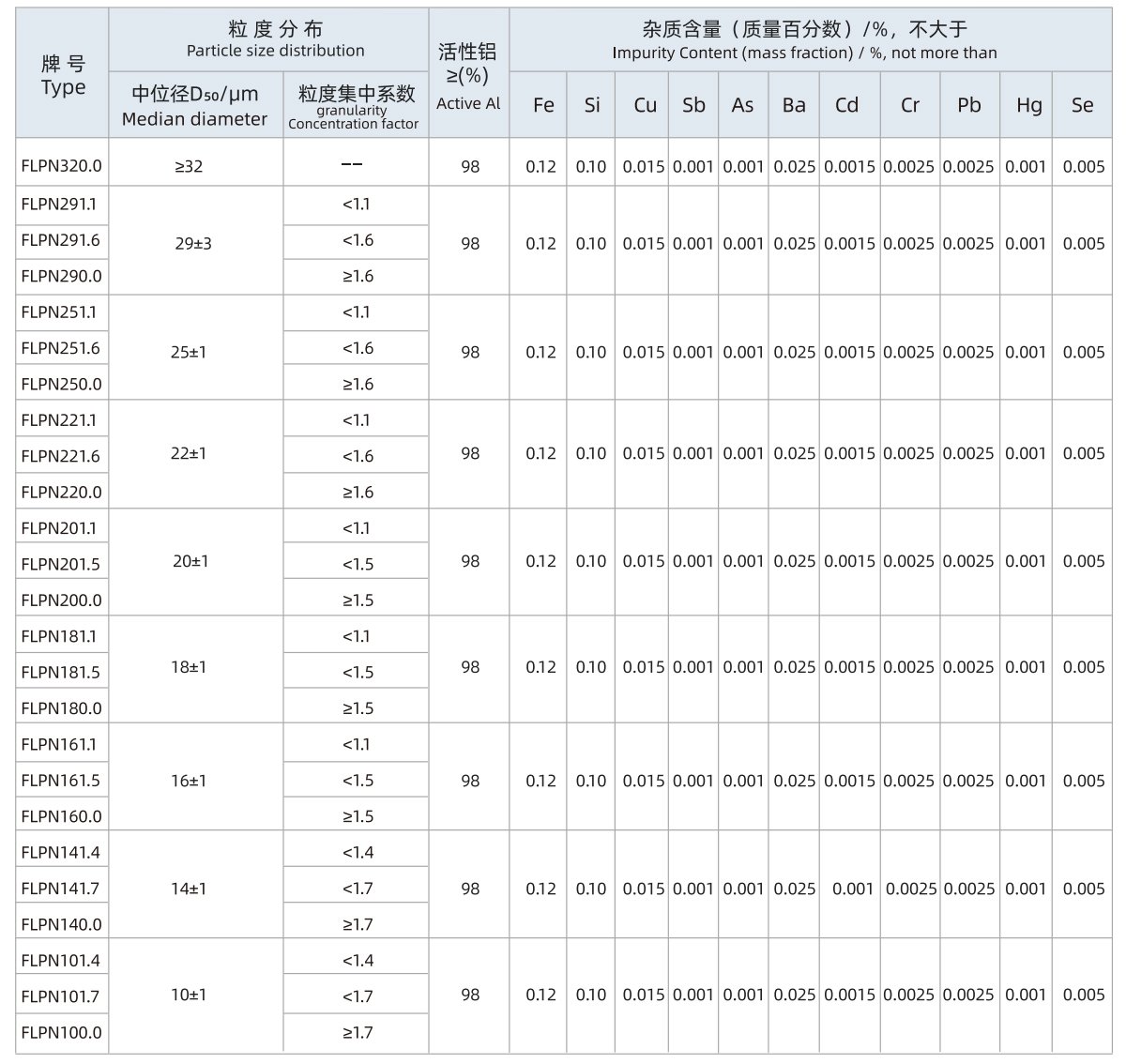

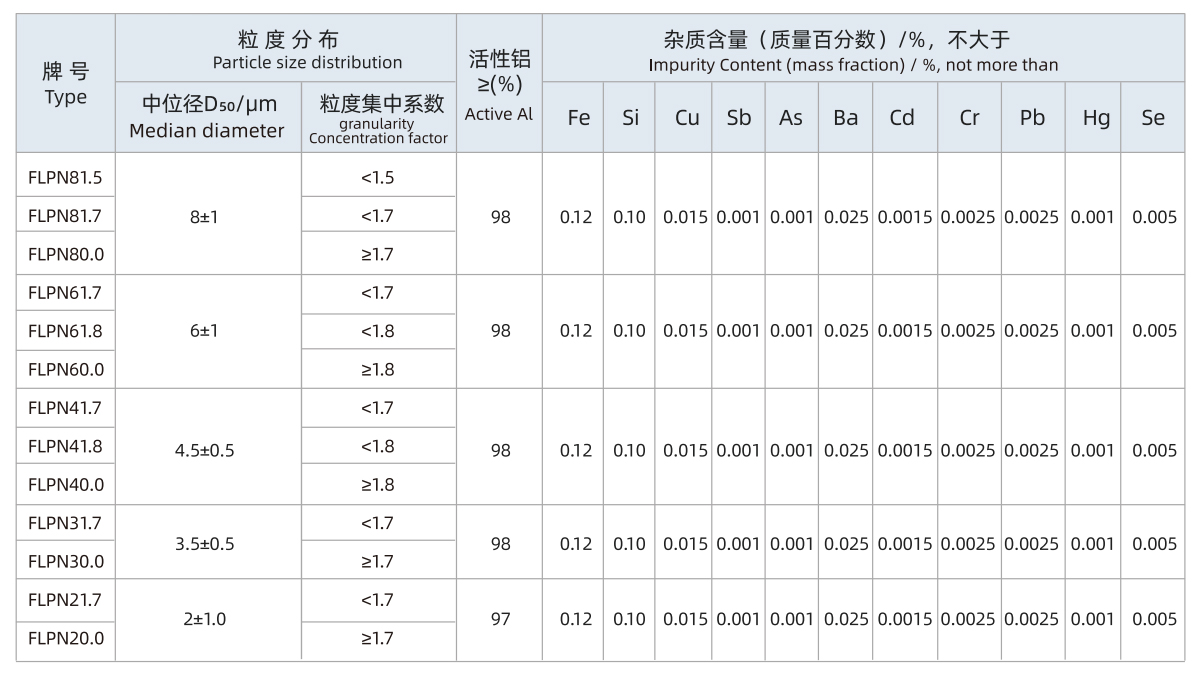

The type and D50. granularity concentration factor are as follows, if the customer have special needs. we will negotiate with the customer.
Type | D50/um | S Grariarity concentration factor |
FLPN320.0 | ≥32 | - |
FLPN291.1 | 29±3 | <1.1 |
FLPN291.6 | <1.6 | |
FLPN290.0 | ≥1.6 | |
FLPN251.1 | 25±1 | <1.1 |
FLPN250.6 | <1.6 | |
FLPN250.0 | ≥1.6 | |
FLPN221.1 | 22±1 | <1.1 |
FLPN221.6 | <1.6 | |
FLPN220.0 | ≥1.6 | |
FLPN201.1 | 20±1 | <1.1 |
FLPN201.5 | <1.5 | |
FLPN200.0 | ≥1.5 | |
FLPN181.1 | 18±1 | <1.1 |
FLPN181.5 | <1.5 | |
FLPN180.0 | ≥1.5 | |
FLPN161.1 | 16±1 | <1.1 |
FLPN161.5 | <1.5 | |
FLPN160.0 | ≥1.5 | |
FLPN141.4 | 14±1 | <1.4 |
FLPN141.7 | <1.7 | |
FLPN140.0 | ≥1.7 | |
FLPN121.4 | 12±1 | <1.4 |
FLPN121.7 | <1.7 | |
FLPN120.0 | ≥1.7 | |
FLPN101.4 | 10±1 | <1.4 |
FLPN101.7 | <1.7 | |
FLPN100.0 | ≥1.7 | |
FLPN81.5 | 8±1 | <1.5 |
FLPN81.7 | <1.7 | |
FLPN80.0 | ≥1.7 | |
FLPN61.7 | 6±1 | <1.7 |
FLPN61.8 | <1.8 | |
FLPN60.0 | ≥1.8 | |
FLPN41.7 | 4.5±0.5 | <1.7 |
FLPN41.8 | <1.8 | |
FLPN40.0 | ≥1.8 | |
FLPN31.7 | 3.5±0.5 | <1.7 |
FLPN30.0 | ≥1.7 | |
FLPN21.7 | 2±1.0 | <1.7 |
FLPN20.0 | ≥1.7 | |
Remarks: we can supply the other type aluminium powder according to our contact. | ||
The chemical composition of aluminium powder is as follows:
Type | /% Active Ai rot lass than | Impurlies not more than, 不大于 | Harmful elemerts not more than, 不大于 | ||||||||||||
Fe | Cu | Si | Mg | Zn | H2o | Sb | As | Ba | Cd | Cr | Pb | Hg | Se | ||
FLPN21.7 FLPN20.0 | 97.0 | 0.2 | 0.015 | 0.2 | 0.02 | 0.03 | 0.10 | 10 | 10 | 250 | 15 | 25 | 25 | 10 | 50 |
Other | 98.0 | ||||||||||||||
